  • GH-260

    GH-260

    This machine is widely used in various industries such as playing cards, health products, medicines, cosmetics, erasers, small box tea, condoms, eye drops, essential balm, cigarette holders, razor blades, chewing gum, firecrackers, hair dyes, stationery, etc. for single-package three-dimensional transparent film packaging of right-angled box items.

    • Packaging speed:40-120 packages per minute
    • Packaging size:Length 40-160mm, Width 30-80mm, Height 5-50mm
    • Power consumption:About 1.6kw
    •  Voltage:220V 50Hz, 60Hz
    • Working air pressure:0.6mpa
    • Machine weight: 350KG
    • Host size: 1400mm×940mm×1470mm
    阅读更多完成

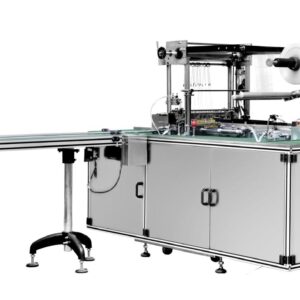

  • GH-360

    GH-360

    The GH-360 is widely applicable for the three-dimensional automatic wrapping of transparent films for single packages and collection packages of various right-angle boxed items, such as medicines, tea, wine, milk powder, perfume, facial masks, ointments, slimming tea, condoms, playing cards, mosquito repellent incense, cigarettes, and single packages, two-five flat packages, and collection packages of various right-angle boxed items.

    • Main technical parameters:
    • Packaging speed: 10-60 packages per minute
    • Packaging size: Length 50-280mm, Width 40-200mm, Height 18-100mm
    • Power consumption: About 4.8kw
    • Electricity voltage: 220V/380V – 50Hz
    • Working air pressure: Working air pressure 0.6mpa
    • Equipment weight: About 550kg
    • Main machine size: 2060mm × 930mm × 1700mm
    • Transportation size: 1720mm × 320mm × 1000mm
    阅读更多完成

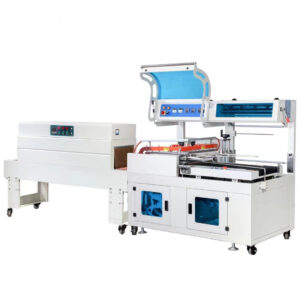

  • GH-380

    GH-380

    Shrink Film Packing Machine+Full-automatic Sealing & Cutting Machine

    • Main technical parameters:
    • Machine Size:L*W*H 1760*940*1580 mm
    • Max. Sealing Size：L 550*450mm
    • Packing Material：PE /PVC/POF
    • Working Air Pressure：5-6kg/cm2
    • Working Speed：0-40 pcs/min
    • Max.Packing Size：H<= 120mm、L+2H<=550mm、W+2H<=450mm
    • Film Thickness：0.01-0.06mmMachine Voltage：220V/50HZ



    阅读更多完成
  • GH-680

    GH-680

    • Box size：Length:65-180mm ,Width：15-92mm.Height15-60mm
    • Requirement Range Of The Paper：300g/m2 ≤ Most Suitable Paper Quality: 350g/m2≤ 450g/m2
    • Other Requirements for Paper Box：The creasing of the paper box shall not be less than 0.4mm, with pre – folding effect. There shall be no glue leakage inside the box. The ear pages need to be rounded. The unilateral gap between the material and the paper box shall be ≥2mm
    • Cartoning Speed:15-80 packs/min
    • Air Supply Used:0.5-0.7Mpa
    • Air Consumption:15-60L/min
    • Power Supply Specification:220V 50Hz / 0.75 KW
    • MachineDimensions:3276(L)*1420(W)*1580(H)
    • Machine Weight:1000Kg
    阅读更多完成
