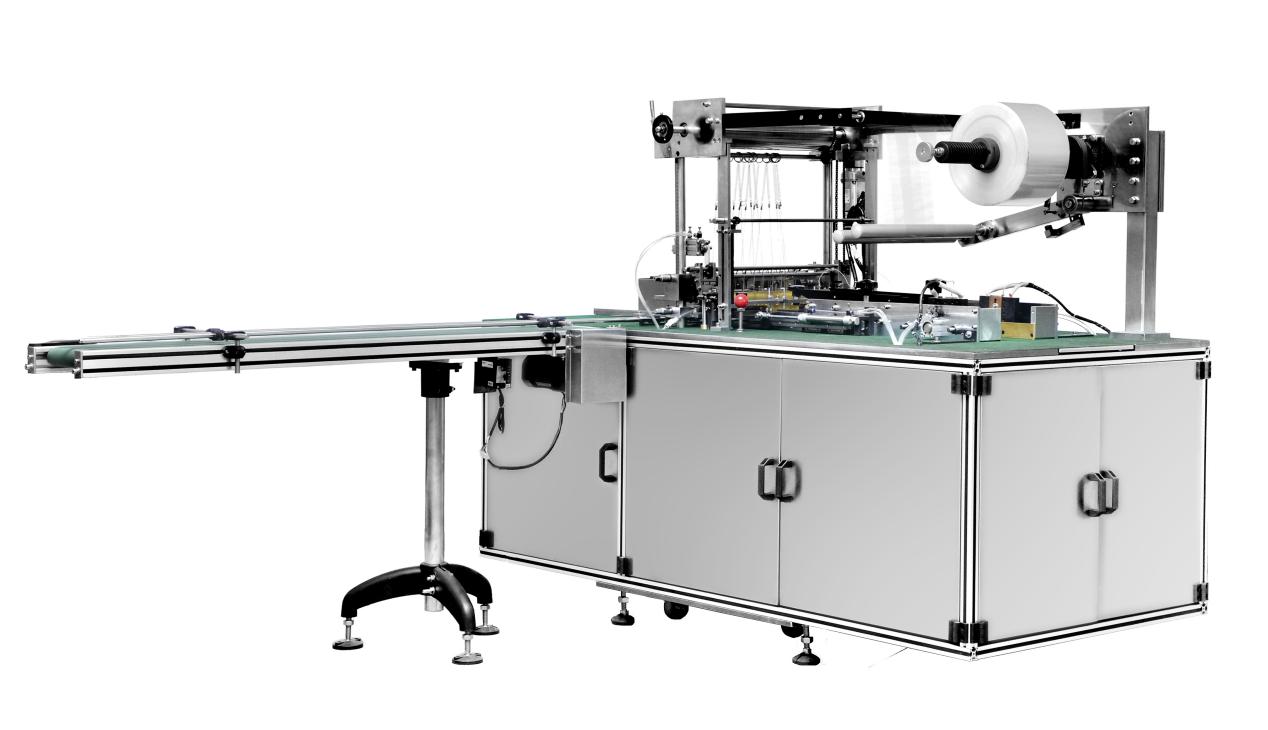

GH-360

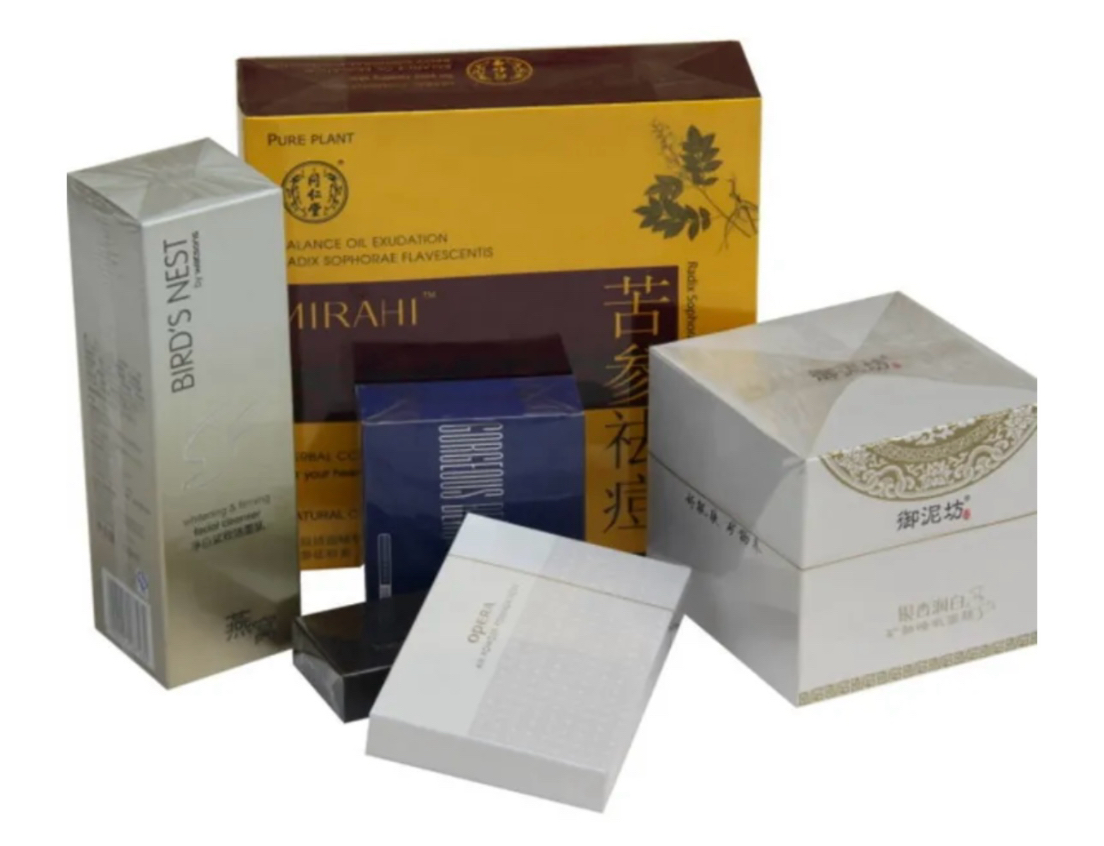

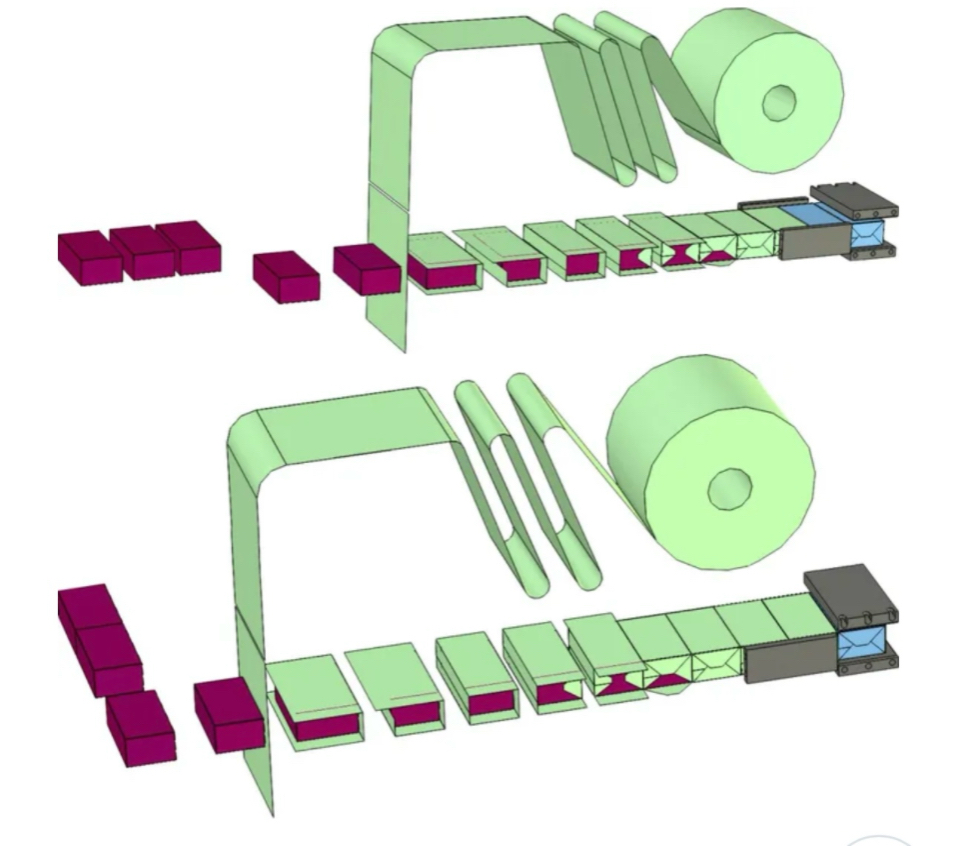

The GH-360 is widely applicable for the three-dimensional automatic wrapping of transparent films for single packages and collection packages of various right-angle boxed items, such as medicines, tea, wine, milk powder, perfume, facial masks, ointments, slimming tea, condoms, playing cards, mosquito repellent incense, cigarettes, and single packages, two-five flat packages, and collection packages of various right-angle boxed items.
- Main technical parameters:
- Packaging speed: 10-60 packages per minute
- Packaging size: Length 50-280mm, Width 40-200mm, Height 18-100mm
- Power consumption: About 4.8kw
- Electricity voltage: 220V/380V – 50Hz
- Working air pressure: Working air pressure 0.6mpa
- Equipment weight: About 550kg
- Main machine size: 2060mm × 930mm × 1700mm
- Transportation size: 1720mm × 320mm × 1000mm
描述

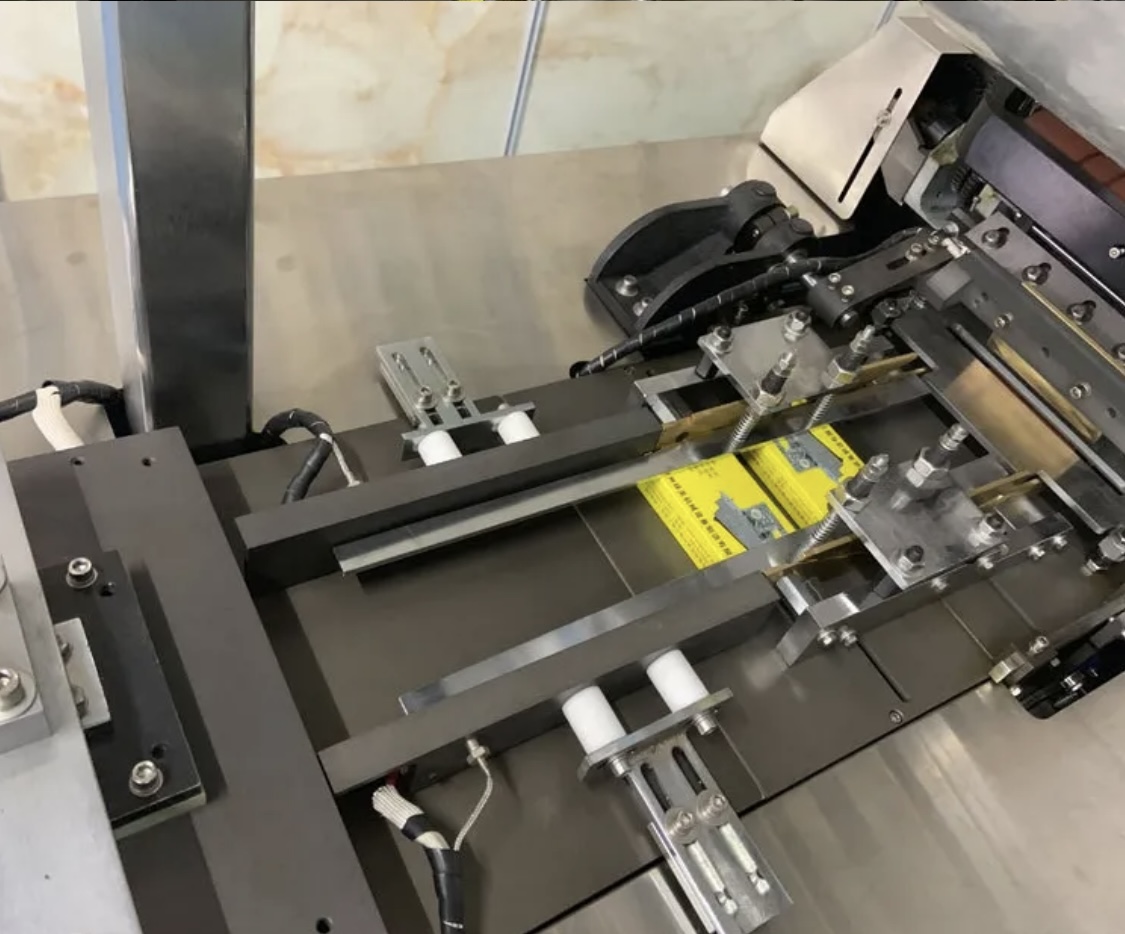

GH-360 is a new type of fully-automated three-dimensional transparent film packaging machine that integrates PLC control system, servo drive system and high-quality pneumatic unit. It can be fully adapted for fully automatic spot pressing, flat pressing, with adjustable speed. The electrical system adopts PLC control and human-machine interface operation system. The main transmission components are all mechanical actions, driven by servo motors and assisted by pneumatic elements. The operation has simple and quick adjustment performance. By simply replacing the molds, various box-shaped products of different sizes can be conveniently produced. When changing different box packaging products, the length of the packaging film, running speed and some technical parameters can all be operated on the touch screen. This machine can be used either as a standalone unit or in conjunction with other machines.
